FILLING MACHINES

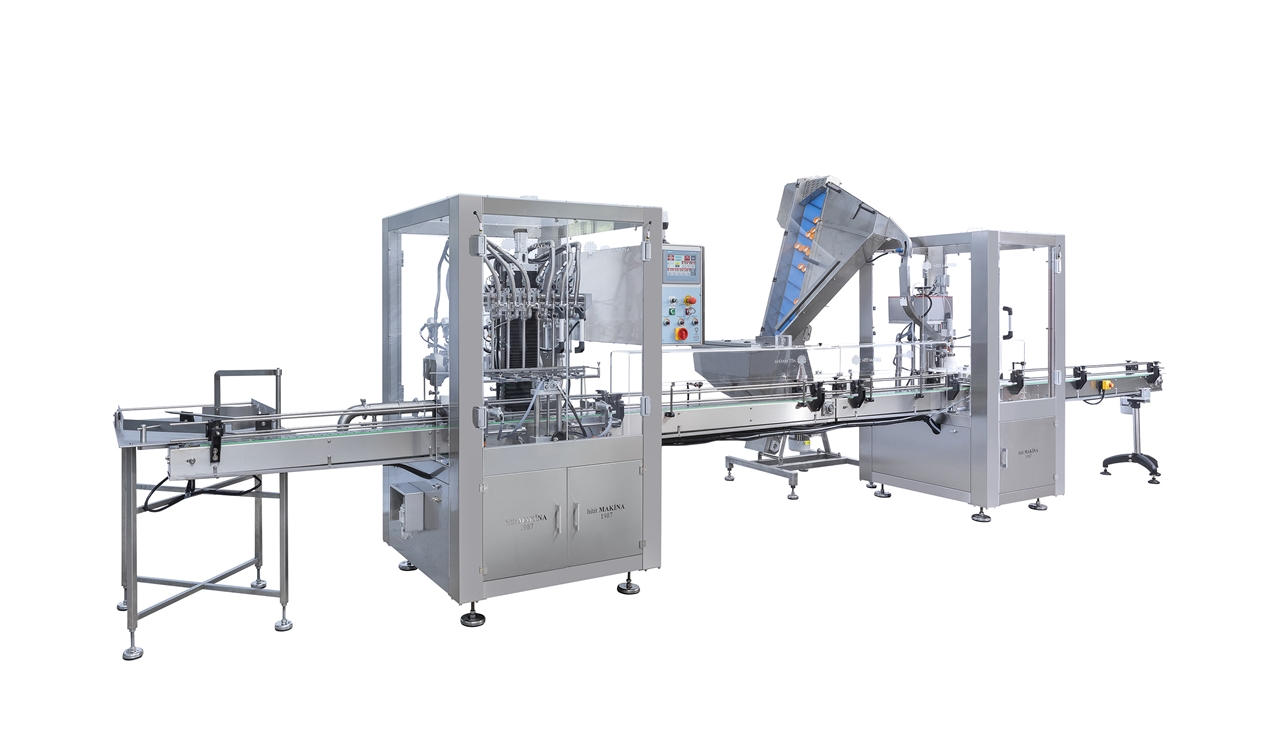

HM FDKM-008 Automatic Flowmeter Filling and Capping Machine
-
LENGTH 115 cm -
WIDTH 800 cm -
HEIGHT 200 cm -
WEIGHT 1350 kg -
CONSUMPTION kWh
| Control System | SIEMENS - BECKHOFF – PLC |
| Frame and Body Components | 304 – 316 STAINLESS STEEL |
| Sealing Elements | PTFE – TEFLON – VITON |

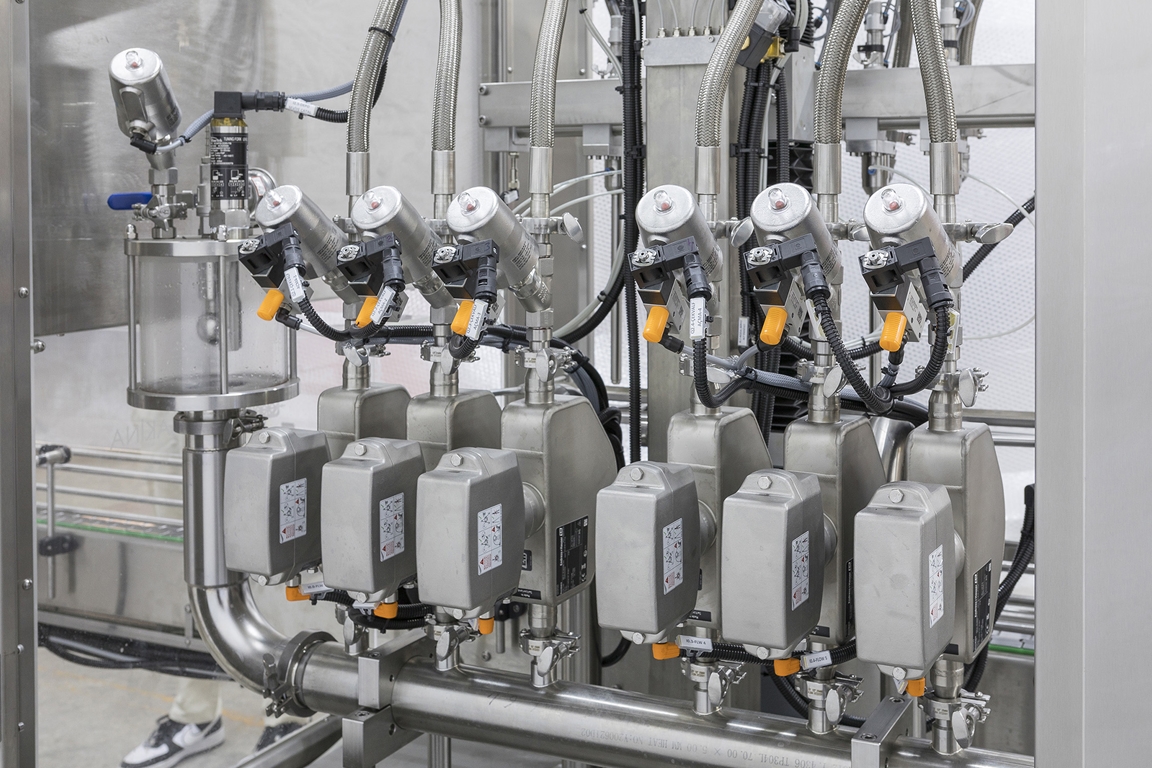

| Filling System and Model | FLOWMETER – Endress Hauser |
| Filling Volume | 100 – 1000ml |
| Filling Accuracy | ±0.3ml |
| Cap Feeding (Optional) | Independent Elevator Conveyor System |
| Capping System | Servo System, Cap Pick and Apply |
| Pneumatic Components | FESTO – SMC – CHELIC |
| Air Consumption | 800 liters/min at 8 BAR |
| Energy Consumption | 380 VOLT 4KW |
| Capacity | 2000-3000 per hour |
| Warranty | 2 years, excluding electrical and pneumatic components |
