FILLING MACHINES

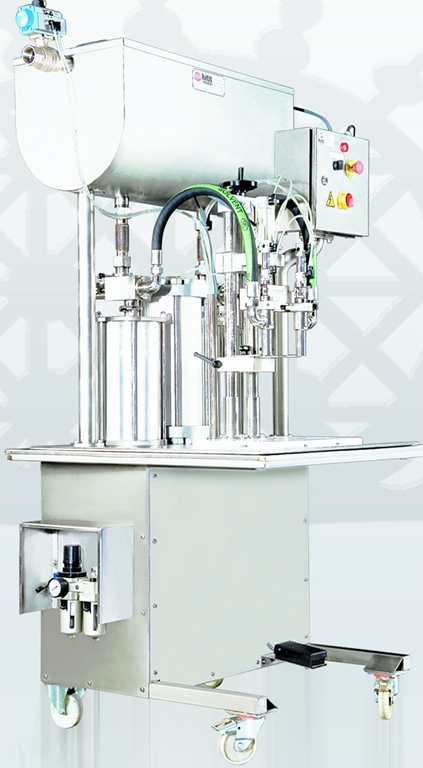

HM LDM 0002 - Manual Dual Liquid Filling Machine
You can fill liquid soap, shampoo, conditioner, shower gel, liquid detergent, vegetable oils, mineral oils, liquid pesticides, fruit juices, bleach, liquid chemicals and similar products in all kinds of PET, cans, bottles, jerry cans, etc. It has 5 different models with pneumatic check valves that can work in 25-250 ml, 50-500 ml, 100-1000 ml, 250-2500 ml filling range. Filling nozzles are mouth opening and closing. The feeding tank is mounted on the top of the machine. The operator starts the filling process by means of the pedal. The filling group is 316 stainless steel. Sealing elements are PTFE teflon and viton.
  • LENGTH 75 cm
  • WIDTH 75 cm
  • HEIGHT 200 cm
  • WEIGHT 250 kg
  • CONSUMPTION kWh
Technical Specifications
CONTROL SYSTEM PLC ELECTRO PNEUMATIC
CHASSIS and BODY PARTS 304 - 316 STAINLESS STEEL
Sealing Elements PTEF - TEFLON - VITON
FILLING SYSTEM VOLUMETRIC PISTON
FILLING VOLUME 100-1000ml
Pneumatic Components FESTO- SMC- CHELIC
ENERGY 220 VOLT
CAPACITY 250- 1000 PCS / HOUR
Guarantee 2 YEARS EXCLUDING ELECTRICAL and PNEUMATIC PARTS
