FILLING MACHINES
HM- OSDKM 008. AUTOMATIC LEVEL CONTROLLED DOUBLE FILLING AND CAPPING MACHINE

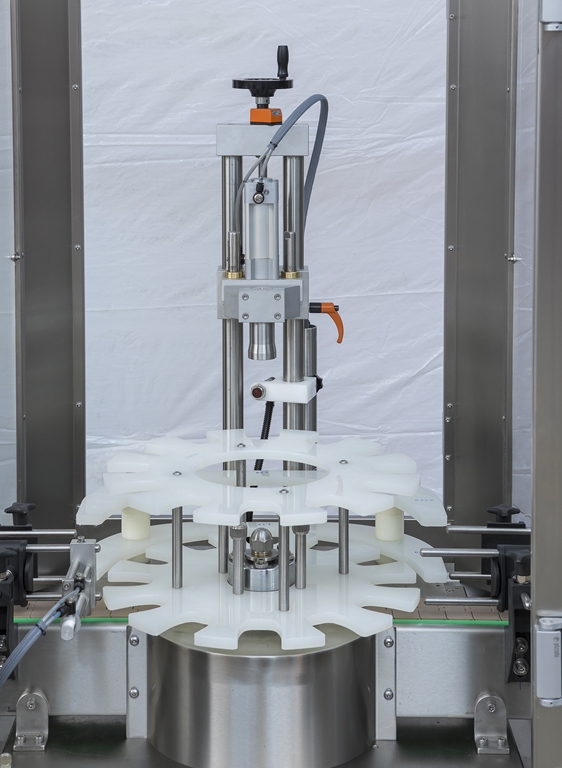

Our machine consists of two units: a linear conveyor filling unit and a capping unit. It is suitable for powdery liquid products. The filling process is performed by its own flow with level control. The capping unit is designed with a rotary star wheel, available in 8 or 12 stations. The cap insertion system is pneumatic. The capping star wheel group has a safety system. A star mold is made according to different packaging types and used alternately.
  • LENGTH cm
  • WIDTH 700 cm
  • HEIGHT 240 cm
  • WEIGHT 1250 kg
  • CONSUMPTION kWh
Technical Specifications
Conveyor dimensions: Length: 7000 mm. Height: 800-900 mm.
Chassis dimensions: Width: 1400 mm. Length: 1150 mm. Height: 2400 mm.
Control system: Siemens - Beckhoff
Pneumatic components: Festo - SMC – Chelic

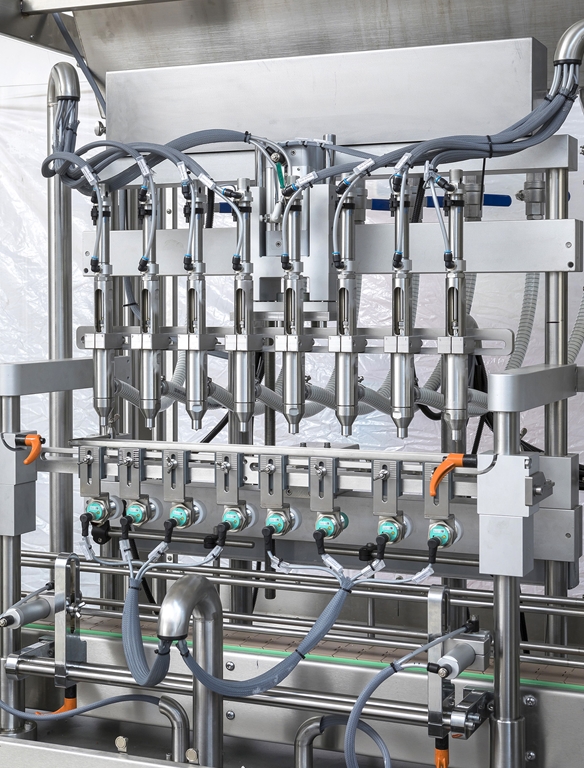

Filling system: Level Controlled
Filling volume: 100 – 2000 ml
Filling accuracy: +/- 3% - 5 ml
Capacity: 2000 – 3000 pieces/hour
